Product features
- Rated voltage:15V/30V/60V/100V
- Full 4-digit display for both voltage and current
- Real-time power display
- Automatic crossover between Constant Voltage (CV) and Constant Current (CC) modes
- Low ripple and noise
- Minimum resolution of 0.01V and 0.01A
- Excellent dynamic response time of <10ms
- Overshoot-free startup with input surge protection
- Intelligent temperature-controlled fan adjusts speed based on load
- Protection features: Over Voltage (OVP) / Over Current (OCP) / Over Temperature (OTP) / ShortCircuit (SCP)
- Standard equipped with USB fast-charging

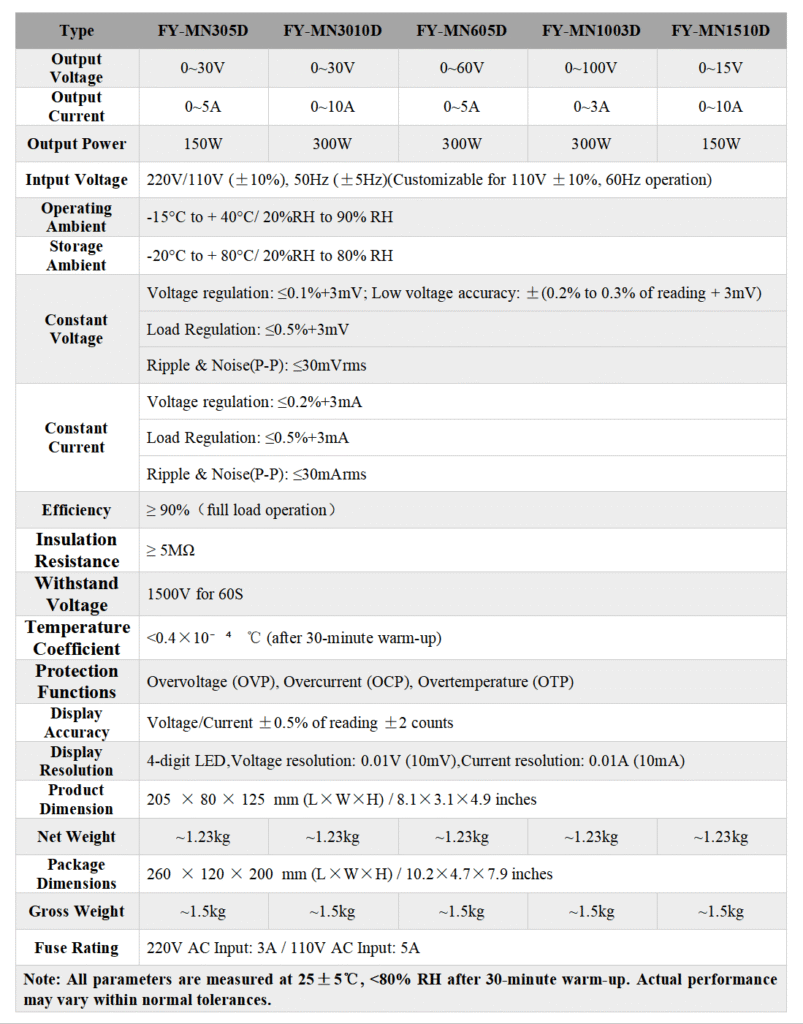

Technical specifications
Product Selection Table
|
Model |
Voltage | Current | Power | Minimum Resolution |
|
FY-MN305D |
0-30.00V | 0-5.00A | 150W | 0.01V0.01A |
|
FY-MN3010D |
0-30.00V | 0-10.00A | 300W | 0.01V0.01A |
|
FY-MN605D |
0-60.00V | 0-5.00A | 300W |
0.01V0.01A |
| FY-MN1003D | 0-100.00V | 0-3.00A | 300W |
0.01V0.01A |
| FY-MN1510D | 0-15.00V | 0-10.00A | 150W |
0.01V0.01A |
