Product features
- Rated voltage ：60V/80V/100V/125V/150V/200V/250V/300V/400V/500V/600V/800V/1000V/1200V/1500V
- Full 5-digit display of voltage and full 4-digit display of current
- Low ripple and low noise
- Minimumresolution of 1mV and 1mA, more accurate power output
- Excellent dynamic response time<10ms
- High display accuracy and high programming accuracy
- NO overshoot during startup, availability to set the rising slope of voltage and current
- Real-time power display
- Standard interface：RS485，Optional configuration：RS232

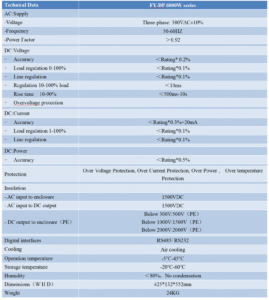

Technical specifications
Product Selection Table
|
Model |
Voltage | Current | Power | Voltage ripple |
| FY-DP60VDC6000W | 0-60.000V | 0-100.0A | 6KW |
Vrms＜0.3% |
|
FY-DP80VDC6000W |
0-80.000V | 0-75.0A | 6KW | Vrms＜0.3% |
| FY-DP100VDC6000W | 0-100.00V | 0-60.00A | 6KW |
Vrms＜0.3% |
|
FY-DP125VDC6000W |
0-125.00V | 0-48.00A | 6KW | Vrms＜0.3% |
| FY-DP150VDC6000W | 0-150.00V | 0-40.00A | 6KW |
Vrms＜0.3% |
|
FY-DP200VDC6000W |
0-200.00V | 0-30.00A | 6KW | Vrms＜0.3% |
| FY-DP250VDC6000W | 0-250.00V | 0-24.00A | 6KW |
Vrms＜0.3% |
|
FY-DP300VDC6000W |
0-300.00V | 0-20.00A | 6KW | Vrms＜0.3% |
| FY-DP400VDC6000W | 0-400.00V | 0-15.00A | 6KW |
Vrms＜0.3% |
|
FY-DP500VDC6000W |
0-500.00V | 0-12.00A | 6KW | Vrms＜0.3% |
| FY-DP600VDC6000W | 0-600.00V | 0-10.00A | 6KW |
Vrms＜0.3% |
|
FY-DP800VDC5600W |
0-800.00V | 0-7.000A | 5.6KW | Vrms＜0.3% |
| FY-DP1000VDC6000W | 0-1000.0V | 0-6.000A | 6KW |
Vrms＜0.3% |
|
FY-DP1200VDC6000W |
0-1200.0V | 0-5.000A | 6KW | Vrms＜0.3% |
| FY-DP1500VDC6000W | 0-1500.0V | 0-4.000A | 6KW |
Vrms＜0.3% |
