Product features
- Rated voltage ：100V/150V/200V/250V/300V/400V/500V/600V/800V/1000V/1200V/1500V
- Full 5-digit display of voltage and full 4-digit display of current
- Low ripple and low noise
- Minimumresolution of 1mV and 1mA, more accurate power output
- Excellent dynamic response time<10ms
- High display accuracy and high programming accuracy
- NO overshoot during startup, availability to set the rising slope of voltage and current
- Real-time power display
- Standard interface：RS485，Optional configuration：RS232

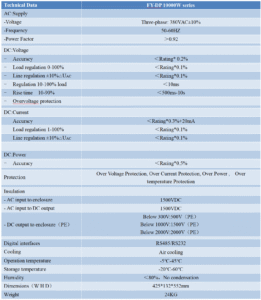

Technical specifications
Product Selection Table
|
Model |
Voltage | Current | Power | Voltage ripple |
| FY-DP100VDC10000W | 0-100.00V | 0-100.0A | 10KW |
Vrms＜0.3% |
|
FY-DP150VDC9000W |
0-150.00V | 0-60.00A | 9KW | Vrms＜0.3% |
| FY-DP200VDC10000W | 0-200.00V | 0-50.00A | 10KW |
Vrms＜0.3% |
|
FY-DP250VDC10000W |
0-250.00V | 0-40.00A | 10KW | Vrms＜0.3% |
| FY-DP300VDC9000W | 0-300.00V | 0-30.00A | 9KW |
Vrms＜0.3% |
|
FY-DP400VDC10000W |
0-400.00V | 0-25.00A | 10KW | Vrms＜0.3% |
| FY-DP500VDC10000W | 0-500.00V | 0-20.00A | 10KW |
Vrms＜0.3% |
|
FY-DP600VDC9000W |
0-600.00V | 0-15.00A | 9KW | Vrms＜0.3% |
| FY-DP800VDC9600W | 0-800.00V | 0-12.00A | 9.6W |
Vrms＜0.3% |
|
FY-DP1000VDC10000W |
0-1000.0V | 0-10.00A | 10KW | Vrms＜0.3% |
| FY-DP1200VDC9600W | 0-1200.0V | 0-8.000A | 9.6KW |
Vrms＜0.3% |
|
FY-DP1500VDC9000W |
0-1500.0V | 0-6.000A | 9KW |
Vrms＜0.3% |
